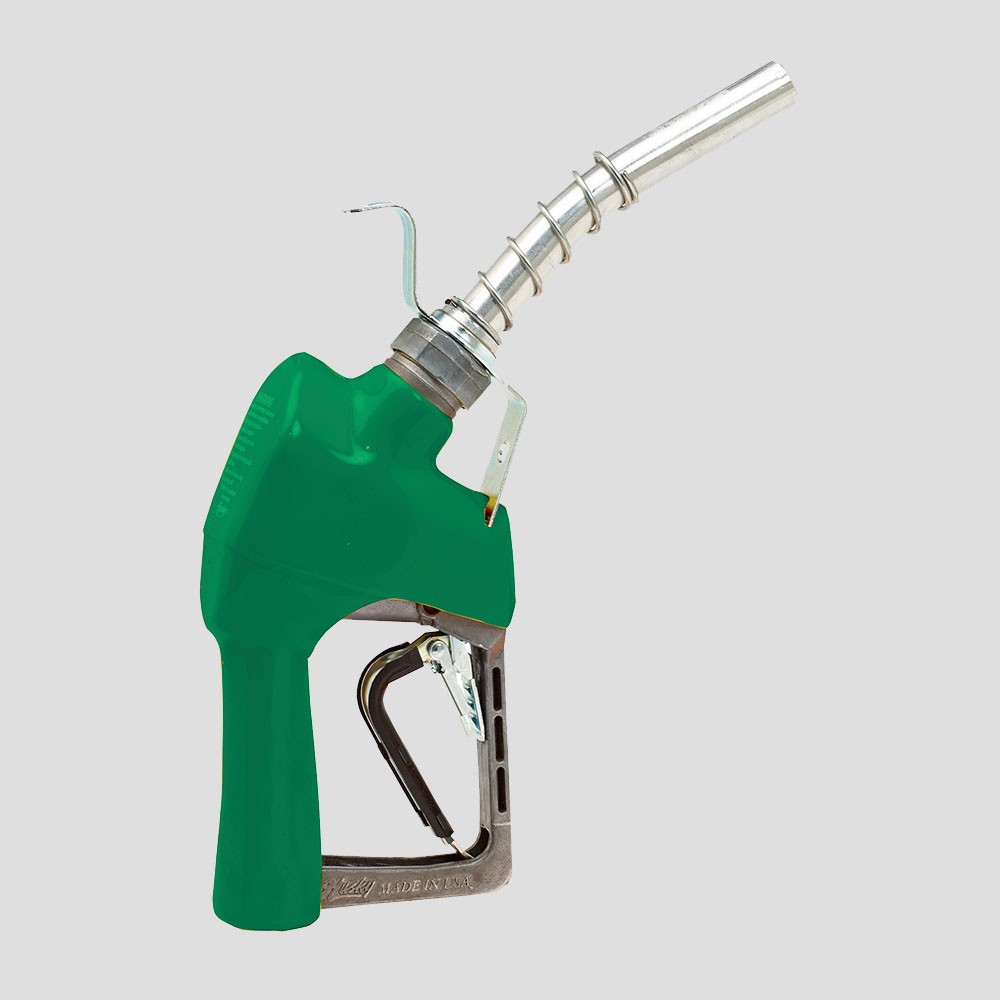

Husky Automatic Shut-Off Nozzle - 337003N-03
- Description
-
Details
3/4" Diesel Nozzle with Three Notch Hold Open Clip, Full Grip Guard and Hook - Additional Information
-
Additional Information
Classification Nozzle Manufacturer Husky Model 337003N-03 SKU 337003N-03 Design Features Strong, improved flow-up to 18 GPM / 68.1 LPM.
Dispenses 10 GPM / 37.8 LPM at only 5.6 psi / 0.38 bar (unleaded nozzle).
Nozzle is equipped with a unique Flo-Stop™ device that shuts off the nozzle if it falls from the fill tank or is raised above horizontal.
Unleaded nozzle includes SteamShaper™ to reduce turbulence for straighter fuel flow and less splash back spillage.
Has built-in hook and fits "holster lock" of skid tank pumps.Input 3/4" NPTF Weight (lbs) 3.1 lbs Notes Not for use with gravity tanks.
Not legal for retail dispensing applications.Flow Rate (GPM) 18 GPM Flow Rate (LPM) 68.1 LPM Material of Construction Body: Aluminum
Seals: Fluorocarbon
Packing: Double O-ring seal protected by fiber reinforced Teflon®
Lever: One piece contoured steel with hard plastic cover - Product Options
-
- Classification: Nozzle
- Manufacturer: Husky
- Model: 159503-03
- SKU: 159503-03
- Design Features: XS Nozzle Shuts-Off when:
- the pump shuts off.
- the gas tank is full.
- the lever is opened before the pump is turned on.
- when the leak detector has not completed the test cycle.
Stainless steel spout bushing keeps spout tip round and acts as a captive fastener to prevent tip-end sensor damage.
Equipped with a unique Flo-Stop device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.
StreamShaper reduces turbulence for straighter fuel flow and less splash back spillage.
Comes standard with smooth full grip guard. - Input: 3/4" NPTF
- Weight (lbs): 3.1 lbs
- Material of Construction: Body: One piece die cast aluminum
Seals: Fluorocarbon
Packing: Double O-Ring seal protected by fiber reinforced Teflon™
Lever: One piece contoured steel with hard plastic cover
