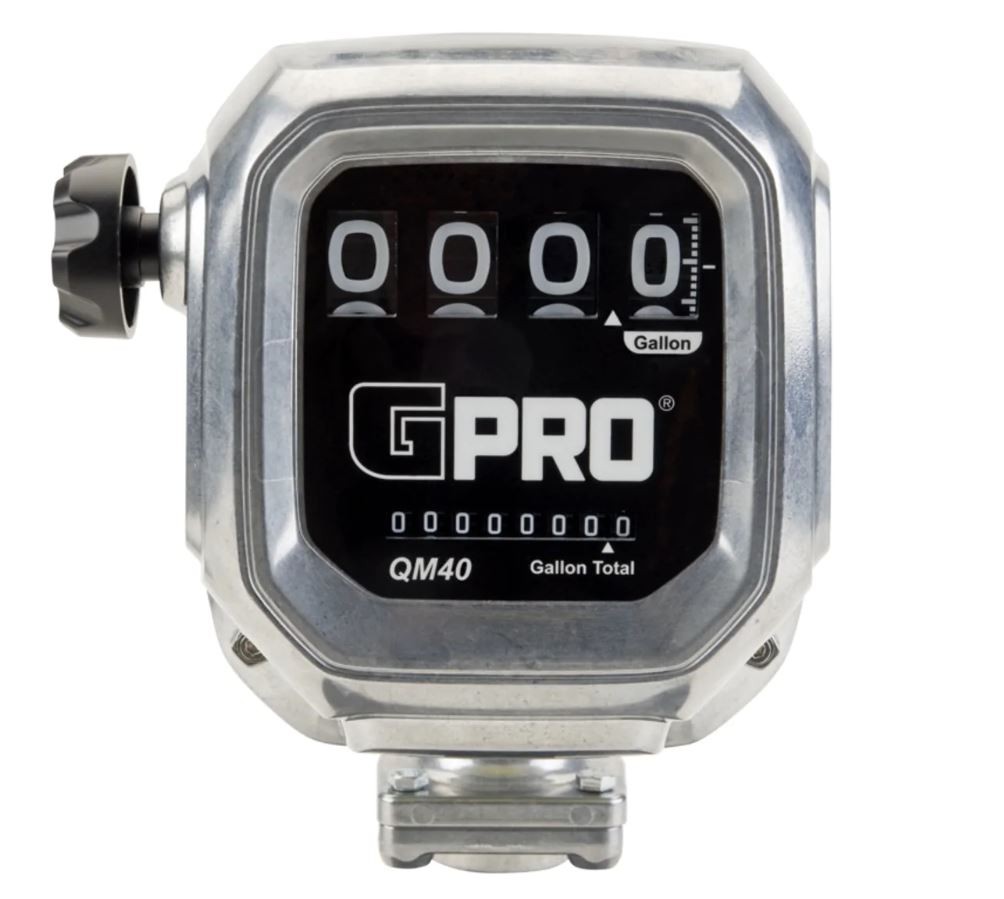

GPI 115/230 VAC - PRO QM40 (139000-01)
- Description
-
Details
115/230 VAC 40 GPM - Meter Only - Additional Information
-
Additional Information
Classification Fuel Meter Manufacturer Great Plains Industries Model PRO QM40 SKU 139000-01 Design Features - Extremely Accurate: Provides precision fuel measurement which helps accurately monitor fuel use - within +/- 1/2% across a flow range from 2 to 40 gallons per minute
- Includes Quick-Fit modular connections, easily attaches to the new GPI modular fuel transfer pumps
- 1" NPT threaded inlet and outlet adapters are included for installation with pipe fittings
- Magnetic Drive eliminates drive shaft leaks
- Oval Gear Technology at an affordable price
- Gallon register rotates to read easily in any application; four-digit display, twist knob reset
- Optional pulser accessory is compatible with most fuel management systems

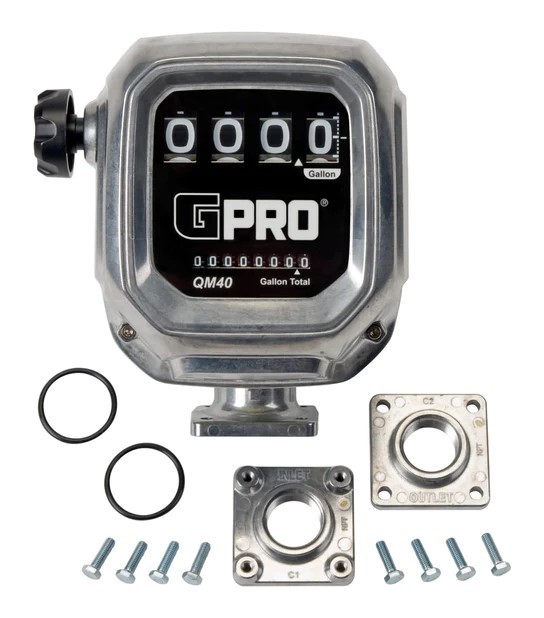

- Continuous duty cycleBox Contents QM40 Fuel meter with gallon register, (2) FNPT Flange fittings, (8) screws, Owner's Manual Applications Gasoline up to E15, Diesel Fuel up to B20, Kerosene, Avgas (100LL)*, Jet A* Notes *For ground-based refueling only. Do not use or mount in or on the aircraft. For use with aviation gasoline (Avgas 100LL), Jet A, and Jet A-1 . User should consult NFPA 407 Standard for Aircraft Fuel Servicing for safety requirements during ground fuel Flow Rate (GPM) 2 to 40 GPM Warranty (Years) Five-Year Meter Warranty - Downloads
