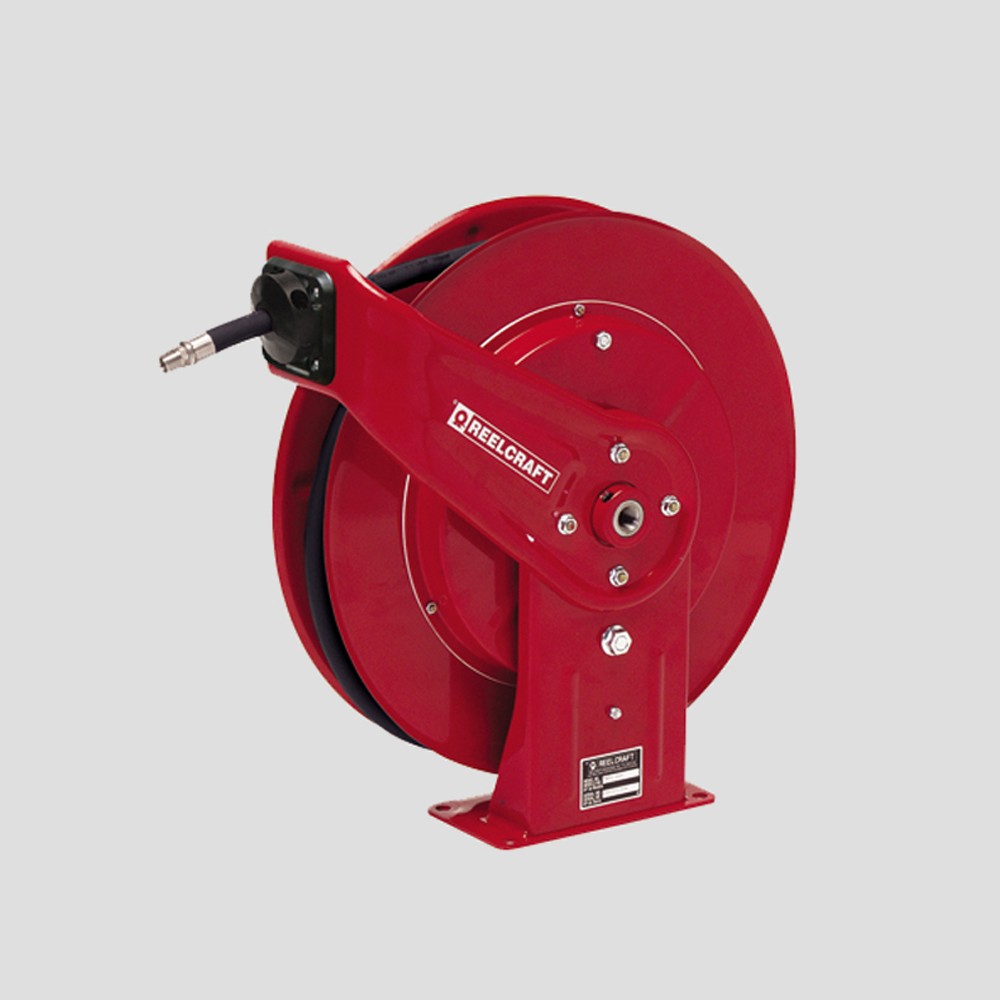

Reelcraft Hose Reel - F83050-OLP
- Description
-
Details
3/4" x 50' Low Pressure Hose Reel Assembly for Fuel - Additional Information
-
Additional Information
Classification Hose Reel Manufacturer Reelcraft Model F83050-OLP SKU F83050-OLP Design Features - Robust latching mechanism - Latch and ratchet are made of heavy duty cast aluminum with substantial surface area to limit the opportunity for premature water
- Full flow stress swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
- Long life drive spring - Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
- Quality finish and corrosion resistant - Individually powder coated components offer the maximum protection from premature corrosion
- Series F80000 reels are supplied with our ball-bearing style swivelCompatibility Gas and Diesel Dimensions (L x W x H) 24" x 10.5" x 25.375" Input 3/4" NPTF Output 3/4" NPTF Applications Industrial
Automotive Service Centers
Transmission Shops
Fleet Maintenance Facilities
Pneumatic Tools
Aircraft Maintenance
Tire Stores
Agriculture
Service Trucks
Wash DownMounting Mobile and Permanent Mounting Applications Weight (lbs) 89 lbs Specifications Hose Included: Yes
Max. Hose Length (ft): 50
Pressure (psi): 50
Max. Temperature (F): 150
Fluid Path Materials:
Seal Type: Viton
Swivel Material: Steel
Fluid Path Casting: Aluminum - Product Options
-
- Classification: Hose Reel
- Manufacturer: Reelcraft
- Model: F83000-OLP
- SKU: F83000-OLP
- Design Features: - Spring retractable fuel delivery reel
- Equipped with Viton seals
- Incorporate metal forms to ensure the greatest possible strength
- Ideal for mobile and permanent mount applications
- Rugged, corrosion-resistant reels
- Suitable for a wide variety of fuel applications, including E85
- Series F/FD/FE/FSD are all supplied with ball-bearing style swivels - Compatibility: Fuel
- Input: 3/4" NPTF
- Output: 3/4" NPTF
- Applications: Industrial
Automotive Service Centers
Transmission Shops
Fleet Maintenance Facilities
Pneumatic Tools
Aircraft Maintenance
Tire Stores
Agriculture
Service Trucks
Wash Down - Mounting: Mobile and Permanent Mount Applications
- Weight (lbs): 74 lbs
- Specifications: Hose Included: No
Max. Hose Length (ft): 50
Pressure (psi): 500
Fluid Path Materials:
Seal Type: Viton
Swivel Material: Steel
Fluid Path Casting: Aluminum
