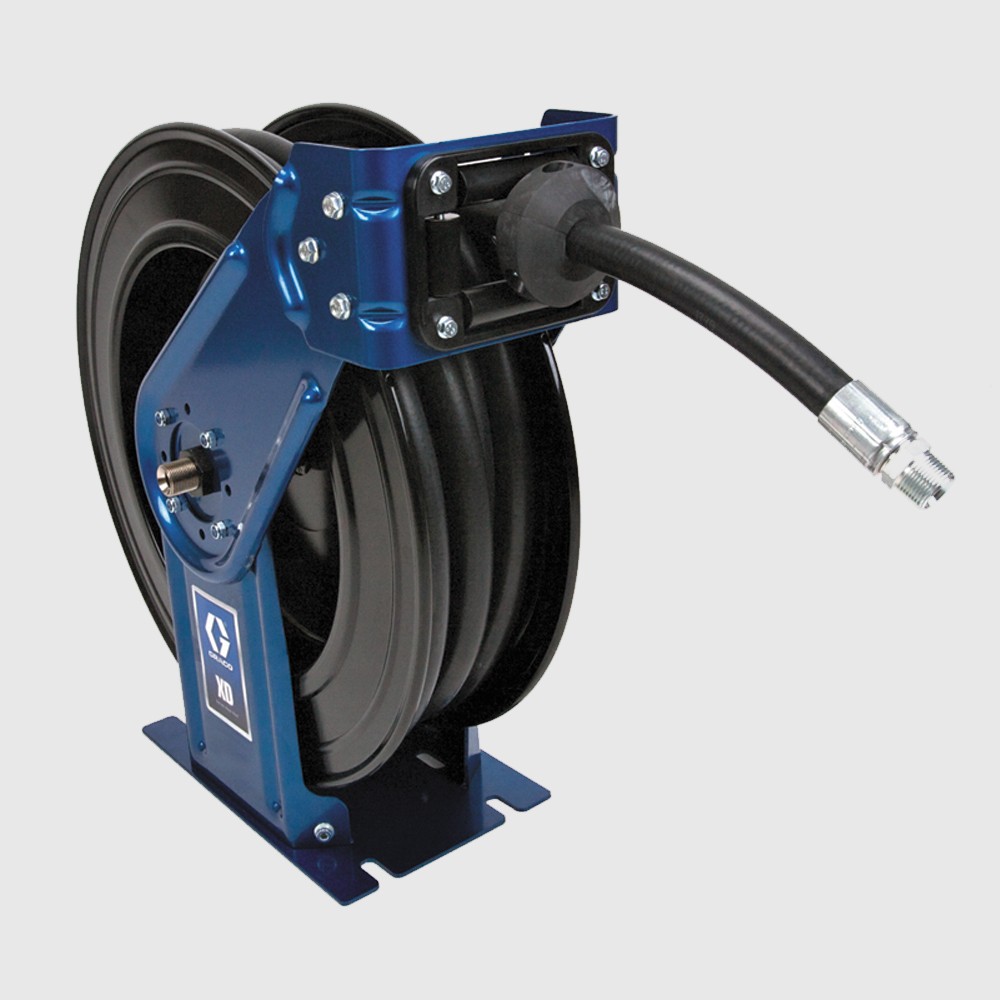

Graco Hose Reel - HSL56B (XD 20)
- Description
-
Details
3/8" x 65' Heavy Duty Hose Reel Assembly for Air and Water - Additional Information
-
Additional Information
Classification Hose Reel Manufacturer Graco Model HSL56B SKU HSL56B Design Features - Designed for robust / heavy-duty applications such as mobile lube trucks or large equipment service, yet with a narrow footprint to fit more reels into small spaces
- Dual pedestal frame provides increased strength for extreme-duty applications
- Long lasting spring is sealed for protection against the weather
- Durable steel spool rides on a sealed roller bearings to ensure trouble-free performance
- Available with arms removed for bulkhead mountingCompatibility Petroleum and synthetic-based oils
Grease
Fuel
Pressure wash
Air
Water
Anti-freeze
Windshield washer
Waste oilColor Available in four colors (White, Red, Black, Yellow) - Metallic blue is standard Applications Heavy-duty truck dealers
Fleet maintenance
Mining maintenance
Public works garages
Construction vehicle maintenance
Heavy-duty mobile service trucks
MiningNotes Hose Inlet Kit for all XD Reels sold separately Specifications Hose Included: Yes
Hose Length (ft): 65
Pressure (psi): 300
Operating Temperature (F): - 20 - 190 - Downloads
