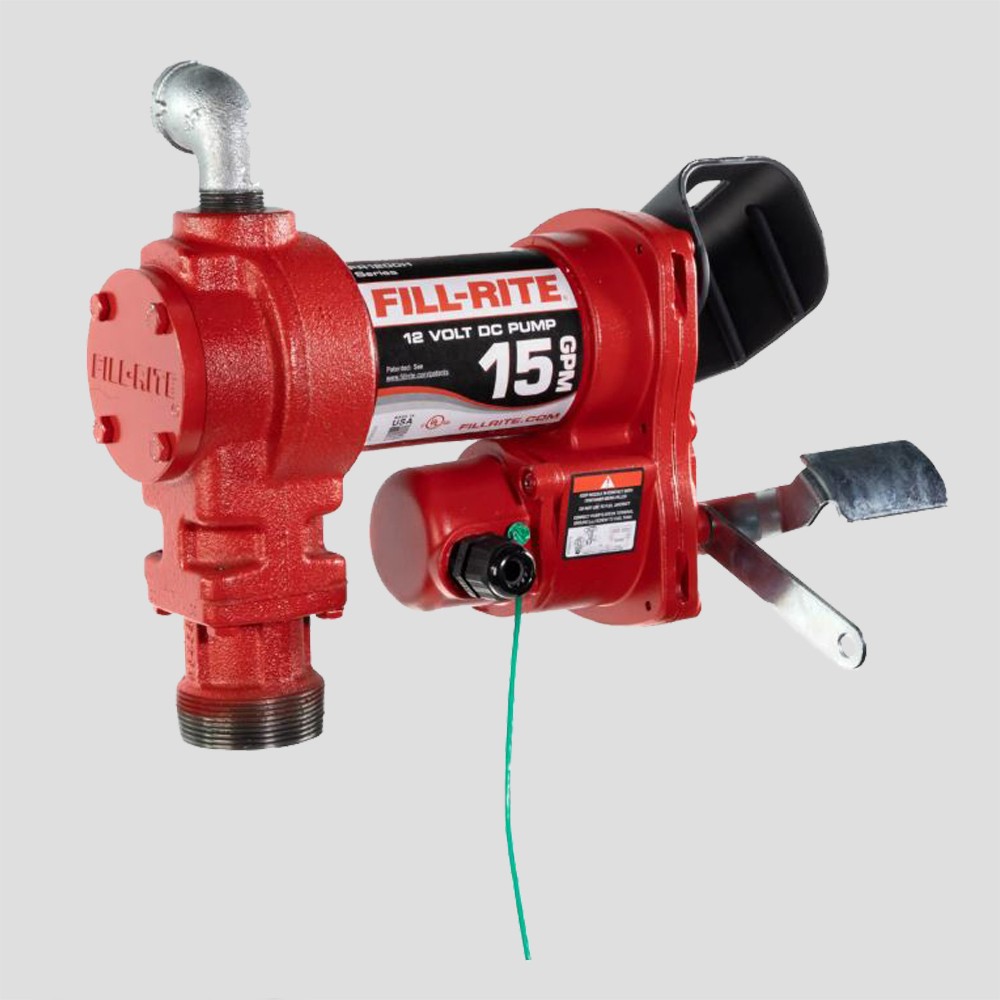

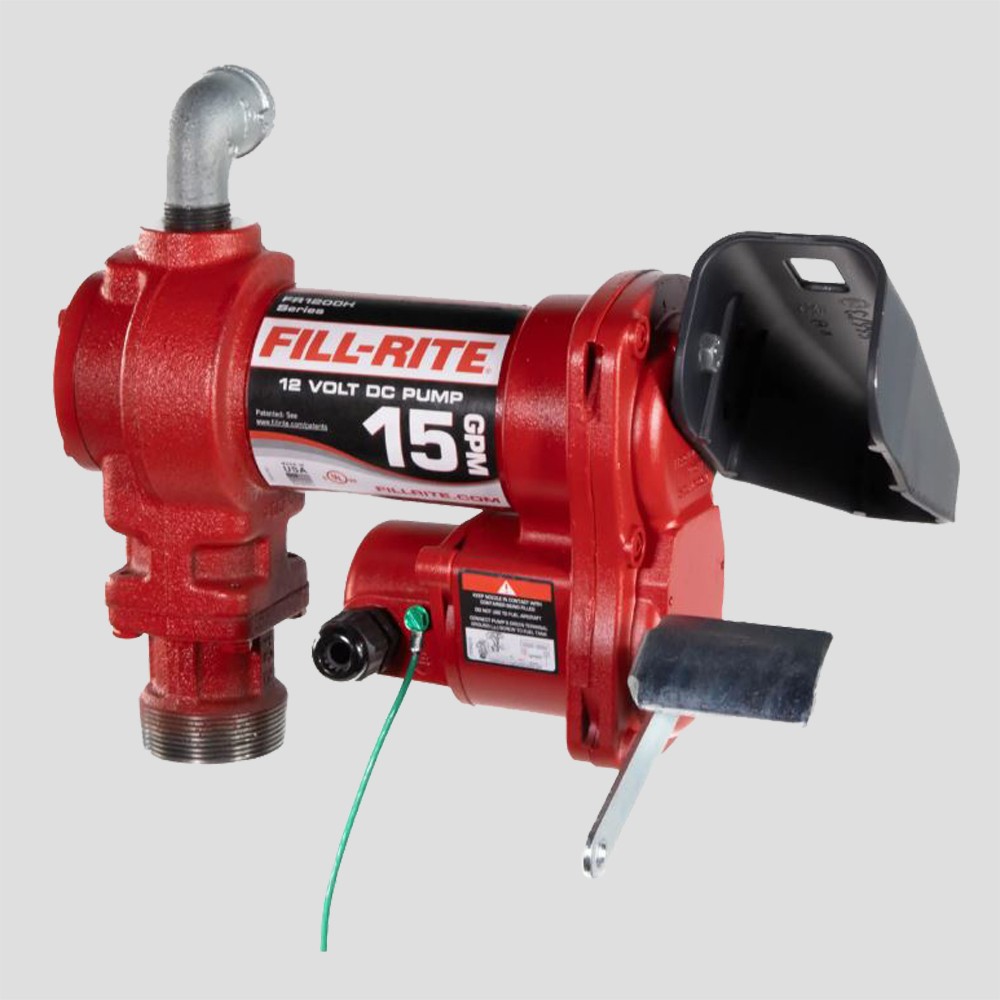

Fill-Rite 12 VDC Pump - FR1204H
- Description
-
Details
Fill-Rite 12 VDC 15 GPM 1/4 HP Pump Only - Additional Information
-
Additional Information
Classification Fuel Pump Manufacturer Fill-Rite Model FR1204H SKU FR1204H Design Features Heavy Duty Cast Iron Construction, Cast Bronze Rotor with Bronze Rotary Vanes, 2" Threaded Base for Tank Mounting, Built-In Strainer, UL/cUL Listed Motor Compatibility Diesel, Gasoline, Kerosene, E15, and Biodiesel up to B20 Input 1" Output 3/4" Box Contents Pump Only Applications Pick-up Truck Tanks Notes Replaces FR1204 Flow Rate (GPM) 20 GPM Flow Rate (LPM) 75 LPM Motor Power (HP) 1/4/ HP - Product Options
-
- Classification: Fuel Pump
- Manufacturer: Fill-Rite
- Model: FR1210H
- SKU: FR1210H
- Design Features: Cast Iron Construction, 30 Minute Duty Cycle, UL/cUL Certified Motor (exception FR1614), 2" NPT Bung Mount
- Compatibility: Diesel, Gasoline, E15, Kerosene, and Bio-Diesel up to B20
- Dimensions (L x W x H): 15.5 x 10 x 6.5
- Input: 1"
- Output: 3/4"
- Color: Red
- Box Contents: 12 ft. hose with static wire and manual nozzle
- Applications: Pick-up truck tanks, various size drum above ground bulk
- Weight (lbs): 31 lbs
- Flow Rate (GPM): 15 GPM
- Flow Rate (LPM): 57 LPM
- Motor Power (HP): 1/4/ HP
- Classification: Fuel Pump
- Manufacturer: Fill-Rite
- Model: FR1211H
- SKU: FR1211H
- Design Features: Cast Iron Construction, 30 Minute Duty Cycle, UL/cUL Certified Motor (exception FR1614), 2" NPT Bung Mount
- Compatibility: Diesel, Gasoline, E15, Kerosene, and Bio-Diesel up to B20
- Dimensions (L x W x H): 18 x 17.375 x 11
- Input: 1"
- Output: 3/4"
- Color: Red
- Box Contents: 12 ft. hose with static wire, manual nozzle, and meter
- Applications: Pick-up truck tanks, various size drum above ground bulk
- Weight (lbs): 37 lbs
- Notes: Replaces FR1211G
- Flow Rate (GPM): 15 GPM
- Flow Rate (LPM): 57 LPM
- Motor Power (HP): 1/4/ HP
