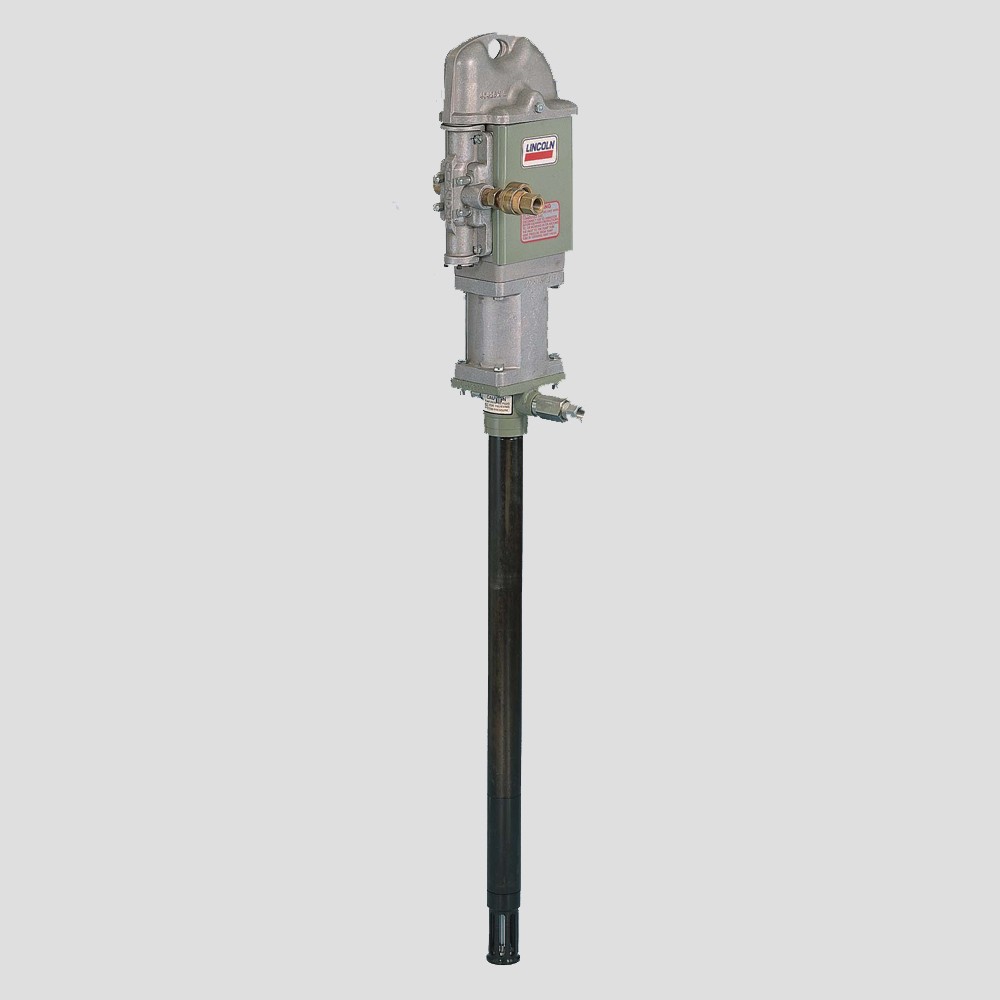

Lincoln 75:1 Grease Pump - 1904
- Description
-
Details
75:1 Air Operated Bare Shovel Foot Grease Pump - Additional Information
-
Additional Information
Classification Grease Pump Manufacturer Lincoln Model 1904 SKU 1904 Design Features Gives years of dependable trouble-free operation. Air motor has extra-long stroke for powerful, uniform delivery on both up and down strokes. Shovel-type pump tube used to add mechanical priming to normal suction when needed. Plunger and bushing of hardened steel for longer life, greater wear resistance. Steel construction designed to withstand pulsation extreme pressure. All wearing parts are tough, heat-treated steel. Plunger, bushing and air valve mating parts are micro-lapped to close tolerances. Prevents by-passing of lubricant and bleeding of air. Eliminates need to replace washers and packings. Trouble-free, positive performance. Air motor operation has no springs to out, rust or lose tension. Air valve is stall-proof, leak-proof and pre-lubricated. Double-acting mechanisms ensure dependable low-surge operation with minimum air consumption. Large air passages allow unrestricted venting. Simplified maintenance. Modular design of pump tube allows for easy disassembly. Input 1/2" NPTF Output 3/4" NPTF Applications Grease Weight (lbs) 77 lbs Flow Rate (GPM) 0.5 GPM Flow Rate (LPM) 1.8 LPM Material of Construction Steel
