Morrison Emergency Vent - 244OM-0200AVEVR
- Description
-
Details

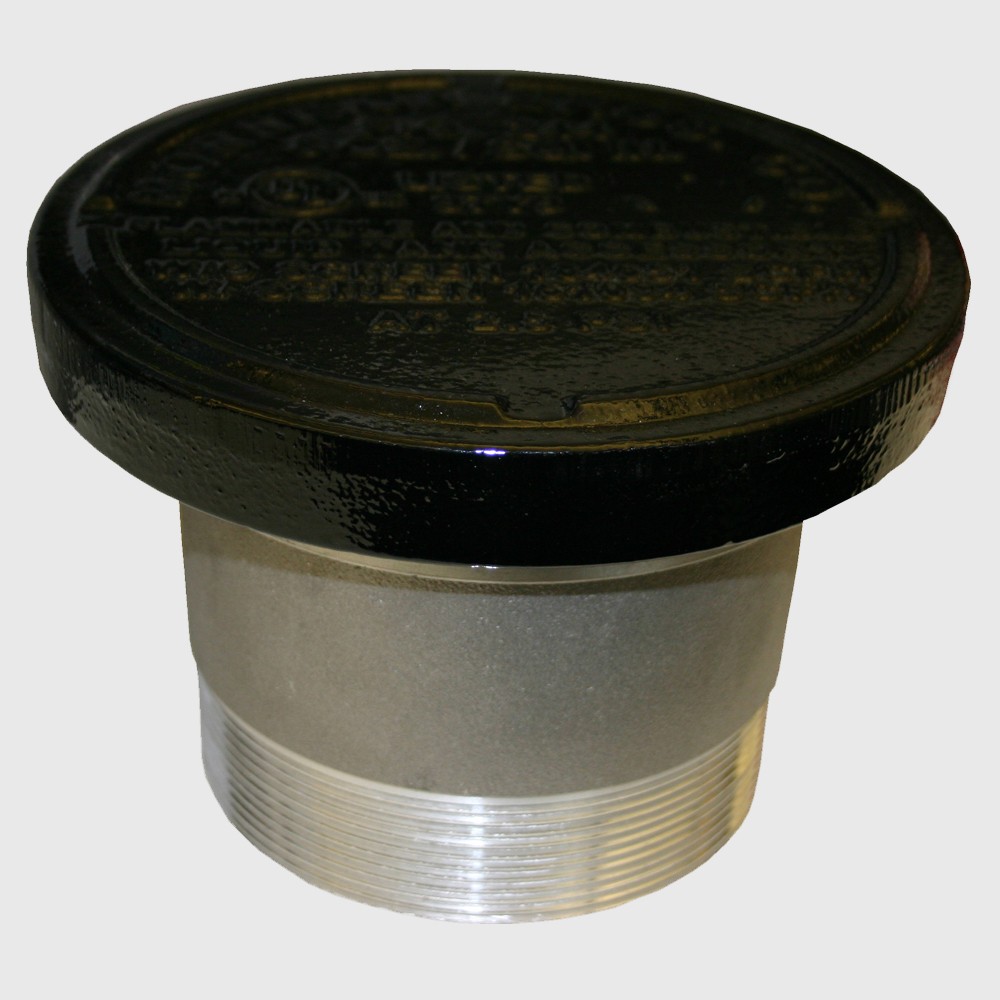

6" 8 Ounce Emergency Vent - Male - Additional Information
-
Additional Information
Classification Emergency Vent Manufacturer Morrison Bros. Co. Model 244OM-0200AVEVR SKU 244OM-0200AVEVR Design Features U/L Listed Emergency Vent (pressure relief only) used on aboveground storage tanks, as a code requirement, to help prevent the tank from becoming over-pressurized and possibly rupturing if ever exposed to fire. The vent must be used in conjunction with a "normal vent."
Correct application of this vent requires proper vent size and selection for the tank system in order to meet the specific venting capacity requirement.
Code Compliance:
When properly sized for the tank, this vent will conform to the requirements of the International Fire Code; National Fire Code of Canada; National Fire Protection Agency (NFPA 1, 30, 30A, 31, 37, 110); Petroleum Equipment Institute (PEI RP200, PEI RP800); Underwriters Laboratories of Canada CAN/ULC S601, CAN/ULC S602, CAN/ULC S652Capacity Venting Capacity: 299,684 / CFH at 2.5 PSI Weight (lbs) 21 lbs Material of Construction Cover: Iron
Seat Material: Viton B
Body Material: Aluminum
Bolt: Zinc Plated Steel - Product Options
-
- Classification: Emergency Vent
- Manufacturer: Morrison Bros. Co.
- Model: 244O-0170AVEVR
- SKU: 244O-0170AVEVR
- Design Features: U/L Listed Emergency Vent (pressure relief only) series is used on above ground storage tanks, as a code requirement, to help prevent the tank from becoming over-pressurized and possibly rupturing if ever exposed to fire. The vent must be used in conjunction with a “normal vent”.
Correct application of this vent requires proper vent size and selection for the tank system in order to meet the specific venting capacity requirements.
The new design increases protection against weather, improves manufacturability and helps limit and control dust accumulation. - Capacity: Venting Capacity: 131,700 / CFH
- Weight (lbs): 18 lbs
- Material of Construction: Cover: Iron
Seat Material: Viton B
Body Material: Aluminum
Bolt: Zinc Plated Steel
- Classification: Emergency Vent
- Manufacturer: Morrison Bros. Co.
- Model: 244O-0200AVEVR
- SKU: 244O-0200AVEVR
- Design Features: U/L Listed Emergency Vent (pressure relief only) used on aboveground storage tanks, as a code requirement, to help prevent the tank from becoming over-pressurized and possibly rupturing if ever exposed to fire. Vent must be used in conjunction with a "normal vent."
Correct application of this vent requires proper vent size and a selection for the tank system in order to meet the specific venting capacity requirement. - Capacity: Venting Capacity: 299,684 / CFH at 2.5 PSI
- Weight (lbs): 20 lbs
- Material of Construction: Cover: Iron
Seat Material: Viton B
Body Material: Aluminum
