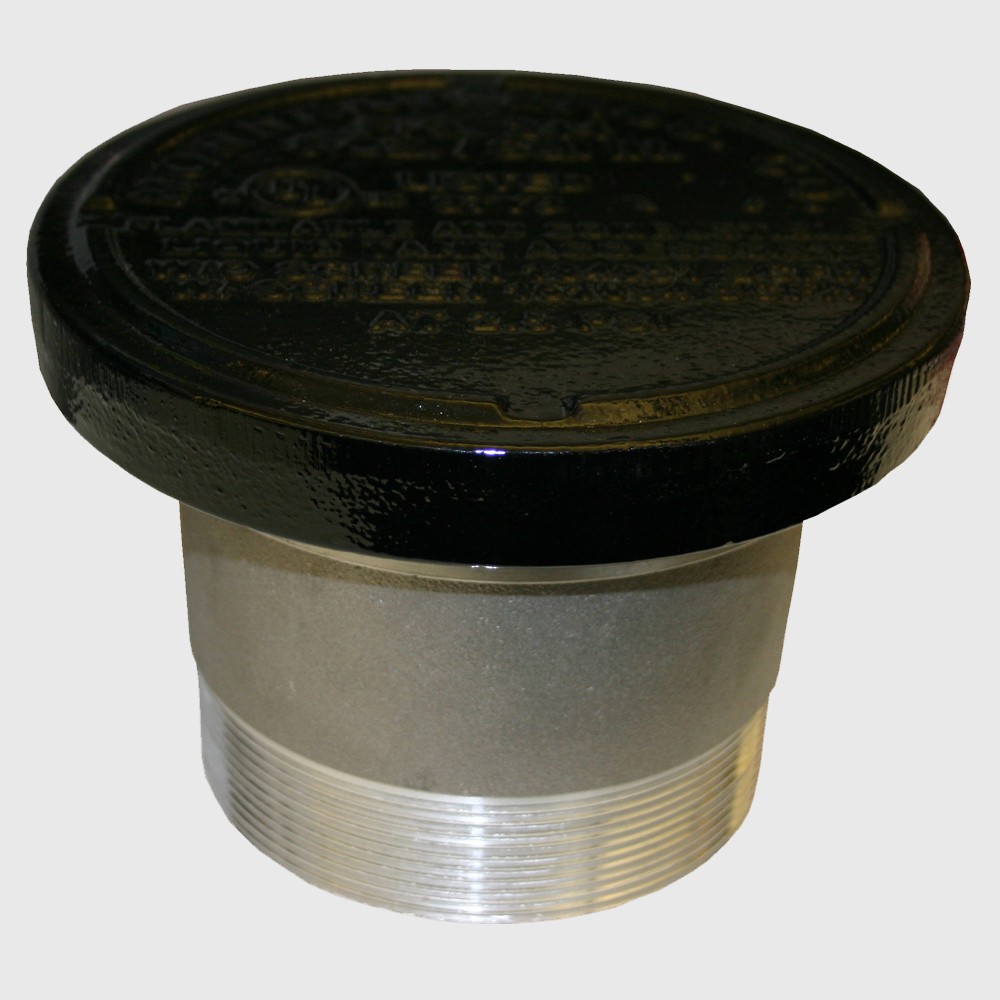

Morrison Emergency Vent - 244OM-0600AVEVR
- Description
-
Details
8" 8 Ounce Emergency Vent - Male - Additional Information
-
Additional Information
Classification Emergency Vent Manufacturer Morrison Bros. Co. Model 244OM-0600AVEVR SKU 244OM-0600AVEVR Design Features U/L Listed Emergency Vent (pressure relief only) used on aboveground storage tanks, as a code requirement, to help prevent the tank from becoming over-pressurized and possibly rupturing if ever exposed to fire. The vent must be used in conjunction with a "normal vent."
Correct application of this vent requires a proper vent size and selection for the tank system in order to meet the specific venting capacity.
Code Compliance:
When properly sized for the tank, this vent will conform to the requirements of the International Fire Code; National Fire Code of Canada; National Fire Protection Agency - NFPA 1, 30, 30A, 31, 37, 110; Petroleum Equipment Institute - PEI RP200, PEI RP800; Underwriters Laboratories Inc. UL-142,
UL-2085, UL-2244; Underwriters Laboratories of Canada CAN/ULC S601, CAN/ULC S602, CAN/ULC S652Capacity Venting Capacity: 503,517 / SCFH at 2.5 PSI Material of Construction Cover: Iron
Seat Material: Viton B
Body Material: Aluminum
Bolt: Zinc Plated Steel - Product Options
-
- Classification: Emergency Vent
- Manufacturer: Morrison Bros. Co.
- Model: 244OM-0200AVEVR
- SKU: 244OM-0200AVEVR
- Design Features: U/L Listed Emergency Vent (pressure relief only) used on aboveground storage tanks, as a code requirement, to help prevent the tank from becoming over-pressurized and possibly rupturing if ever exposed to fire. The vent must be used in conjunction with a "normal vent."
Correct application of this vent requires proper vent size and selection for the tank system in order to meet the specific venting capacity requirement.
Code Compliance:
When properly sized for the tank, this vent will conform to the requirements of the International Fire Code; National Fire Code of Canada; National Fire Protection Agency (NFPA 1, 30, 30A, 31, 37, 110); Petroleum Equipment Institute (PEI RP200, PEI RP800); Underwriters Laboratories of Canada CAN/ULC S601, CAN/ULC S602, CAN/ULC S652 - Capacity: Venting Capacity: 299,684 / CFH at 2.5 PSI
- Weight (lbs): 21 lbs
- Material of Construction: Cover: Iron
Seat Material: Viton B
Body Material: Aluminum
Bolt: Zinc Plated Steel
