OPW Retractor Base - P100-4STF
- Description
-
Details
Freestanding Retractor Base - Additional Information
-
Additional Information
Classification Retractor Manufacturer OPW Model P100-4STF SKU P100-4STF Design Features Freestanding Retractor Base - Product Options
-

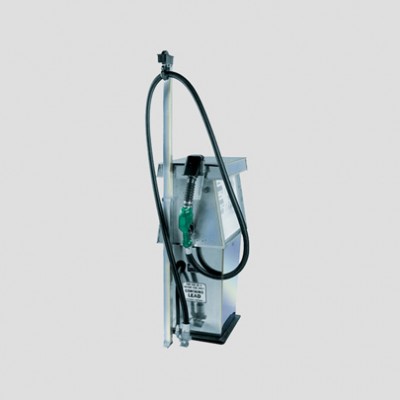

- Classification: Retractor
- Manufacturer: OPW
- Model: 6100-5000
- SKU: 6100-5000
- Design Features: Counterweights are precisely matched to each hose configuration to ensure that a minimal pulling force is needed throughout hose extension. Has just two moving parts, ensuring a long service with a minimum of maintenance.
The 100 is available in a multitude of configurations to meet virtually any conventional or vapor recovery hose / nozzle configuration.
Models are also available for air and water hose applications to keep hoses clear of vehicles when not in use.
CARB Certified State II Component for use with single and dual hose dispensers as per Executive Order G-70-52-AM.
Hose length: 15-18 feet - Mounting: Freestanding
- Weight (lbs): 38 lbs
- Classification: Retractor
- Manufacturer: OPW
- Model: 6100-AGBR
- SKU: 6100-AGBR
- Design Features: Counterweights are precisely matched to each hose configuration to ensure that a minimal pulling force is needed throughout hose extension.
Has just two moving parts, ensuring a long service with a minimum of maintenance.
The 100 is available in a multitude of configurations to meet virtually any conventional or vapor recovery hose / nozzle configuration.
Models are also available for air and water hose applications to keep hoses clear of vehicles when not in use.
CARB Certified State II Component for use with single and dual hose dispensers as per Executive Order G-70-52-AM.
Hose length: 11-13 feet - Weight (lbs): 31 lbs
- Notes: Hose clamp not included

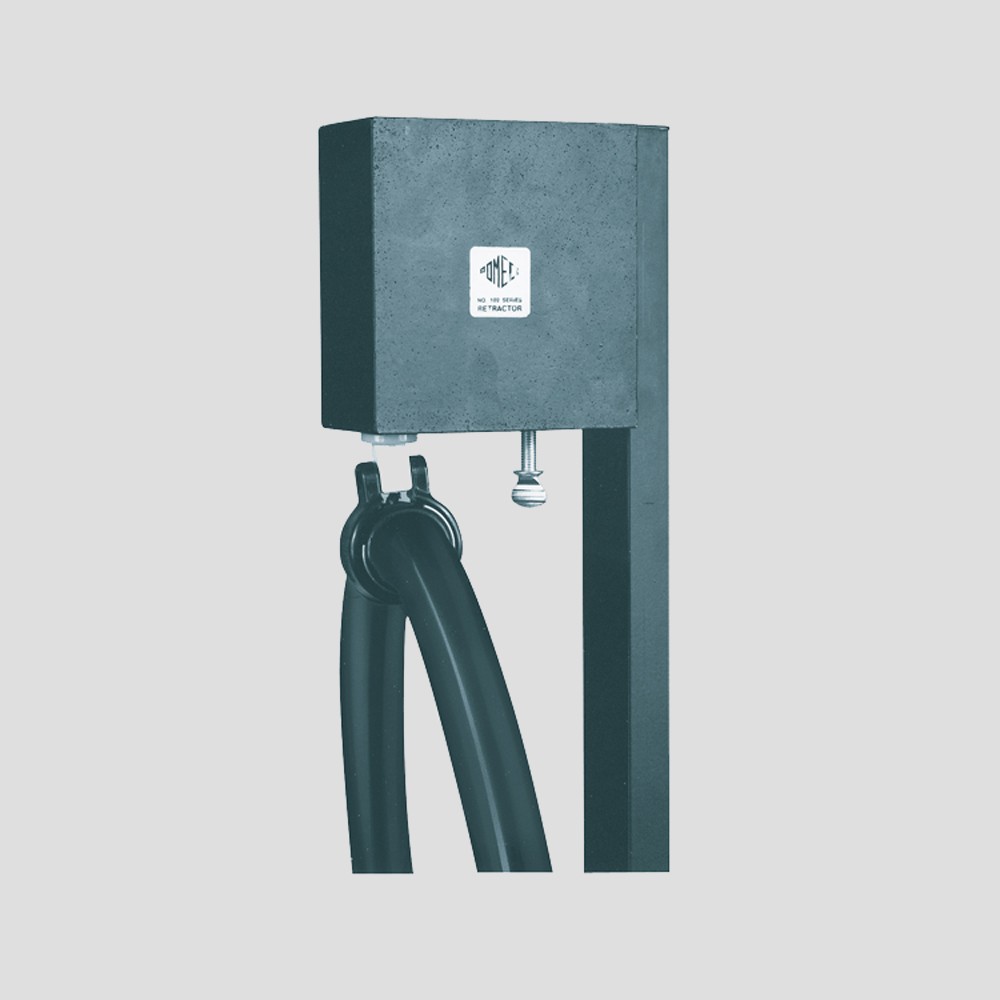

- Classification: Retractor
- Manufacturer: OPW
- Model: 6102-1039P
- SKU: 6102-1039P
- Design Features: The spring-loaded reel and stretch resistant cable provide smooth and steady tension throughout hose extension and return. The removable sideplate provides full access to the mechanism for easy tension adjustment and unit maintenance. A convenient safety thumb screw is provided to lock the reel in place during tension adjustment.
Multiple mounting options - the POMECO 102 housing is tapped on the top for bolting to overhead crossbars, and on the side for mounting to vertical posts. The 102 is available as a retractor kit or as separate components. - Box Contents: Box, Post, Bracket, Foot, and Hardware
- Weight (lbs): 12 lbs
- Material of Construction: Cast aluminum housing; Black polyester cable; Aluminum Post
