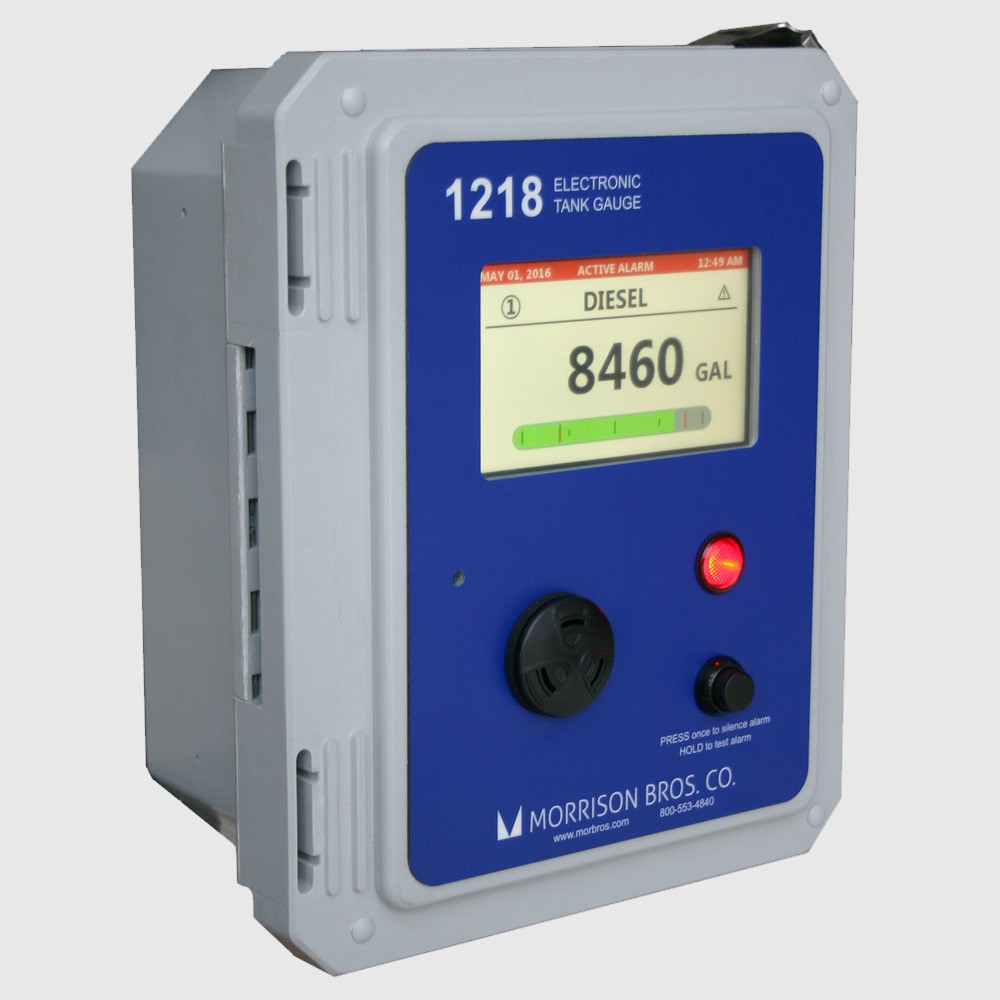

Morrison Level Gauge - 1218C
- Description
-
Details
Electronic Level Gauge Console - Additional Information
-
Additional Information
Classification Gauge Manufacturer Morrison Model 1218C SKU 1218C Design Features - 4.3” diagonal color LCD display (480x272 pixels) with auto LED backlight adjustment
- System console displays liquid volume level in horizontal, rectangular, or vertical tanks
- Level units: feet and inches or centimeters (resolution to 1/10 of an inch)
- Volume units: gallons or liters
- Visual and audible alarm indication when alarm condition is activated
- 2 output relays—3 Amps @ 240 VAC
- Simple push to test or acknowledge alarm button
- USB port functionality—software updates and download event logs
- Configuration setup via Ethernet PC connection, Ethernet Network connection, or manually at console
- NEMA 4X indoor/outdoor weather protected, lockable enclosure
- Optional remote secondary console with operational functionality - Downloads
-
PDF Downloads
- Morrison 1218C - Brochure
- Morrison 1218C - Brochure
