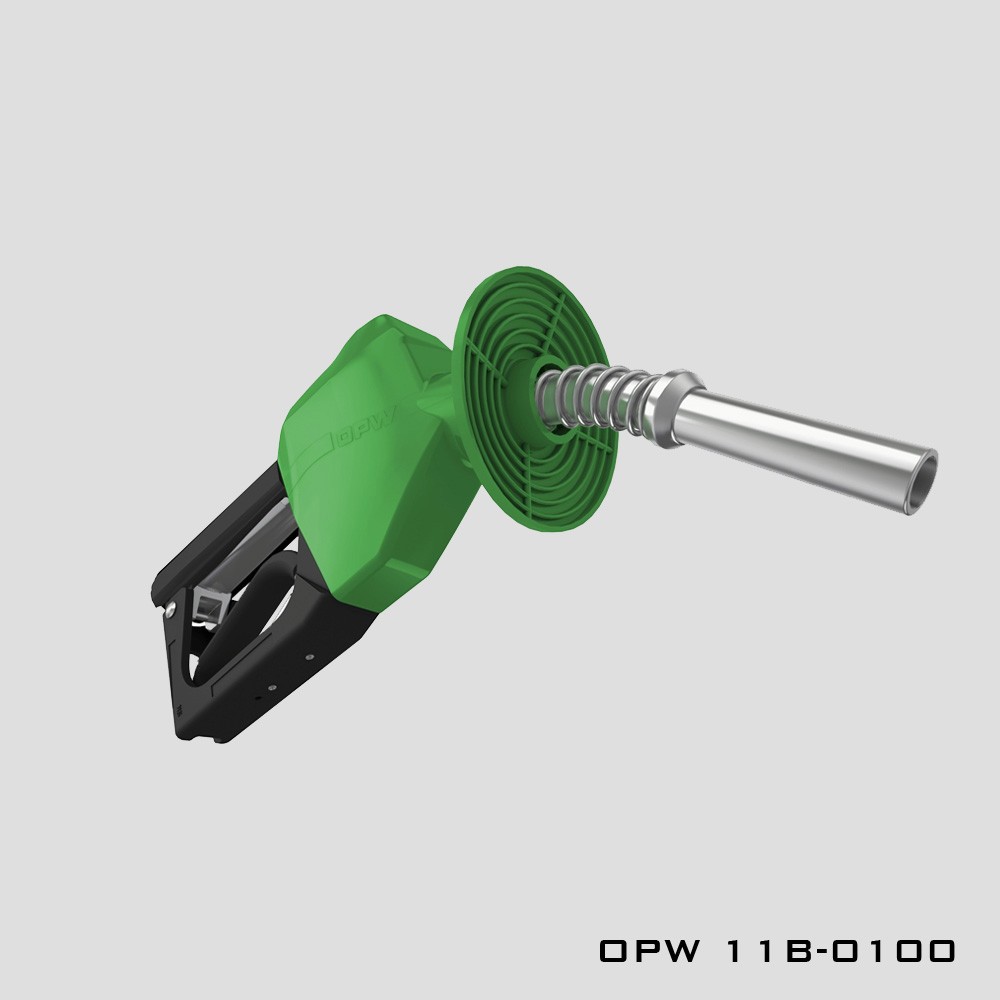

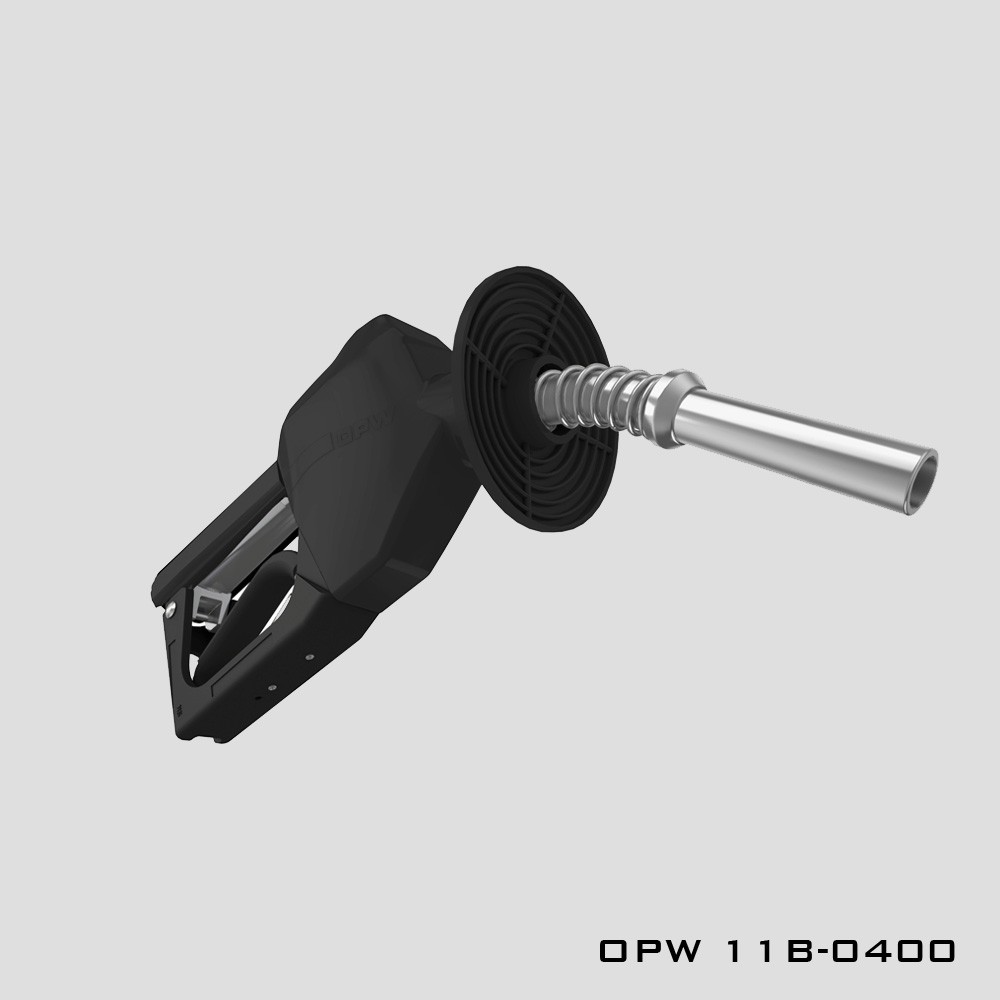

OPW Automatic Pressure Activated Nozzle - 11B
- Description
-
Details
3/4" Diesel Nozzle with Hold Open Clip and Leaded Spout - Additional Information
-
Additional Information
Classification Nozzle Manufacturer OPW Model 11B SKU 11B Design Features UL and ULC Listed for use in gasoline, diesel, and up to 10% ethanol blends.
Prevents gasoline spills in pre-pay or card lock systems utilizing OPW's unique No Pressure - No Flow Device. The nozzle cannot be opened until the pumping system is pressurized, and closes automatically when the pressure is removed.
Prevents consumer from jamming the nozzle in an open position - Block on lever guard.
FlowLock™ allows nozzle to shut-off when falling out of a vehicle, and tipped up limiting spillage and unsafe conditions.Capacity Maximum Pressure: 50 psi Compatibility Diesel Input 3/4" NPT Output 3/4" Color Green: 0100
Red: 0300
Black: 0400Box Contents Nozzle Applications For standard auto diesel service Weight (lbs) 2.73 lbs Material of Construction Body: Aluminum
Lever & Lever Guard: Duratuff®
Packing: Graphite with Teflon®
Disc: Viton
Spout: Aluminum - Downloads
