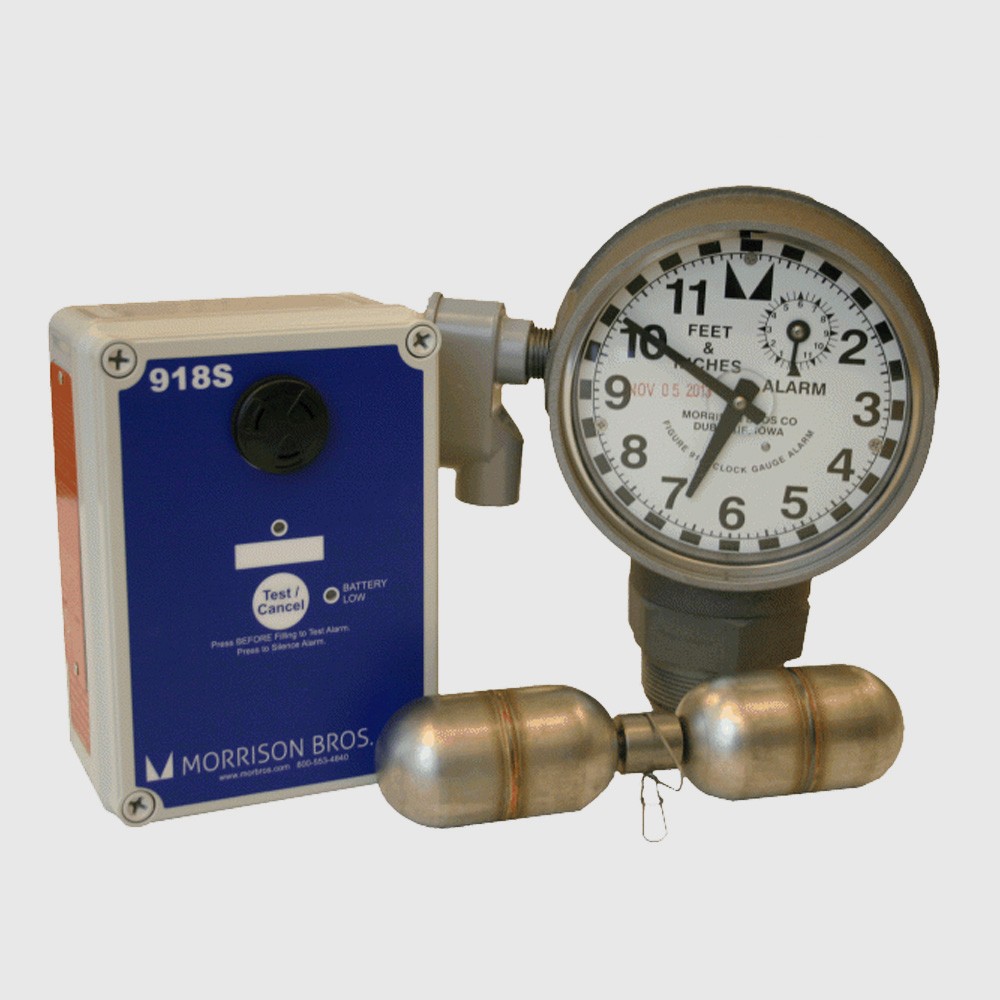

Morrison Level Gauge - 918-2000AGEVR
- Description
-
Details
Clock Level Gauge Up to 12' - Additional Information
-
Additional Information
Classification Morrison Clock Gauge Manufacturer Morrison Brothers Model 918-2000AGEVR SKU 918-2000AGEVR Design Features - Easy to install in a single 2" tank top opening, easy to calibrate
- Gauge face displays level reading in feet and inches. The hour hand (short hand) displays the number of feet and the minute hand (long hand) accurately displays the number of inches
- Gallon or liter reading gauge models available
- Accurate to 1/8 of an inch
- Easily read from 30 feet away
- Vapor tight construction and fog free design
- Gauge rotates 360 degrees making it easy for the face to be read from the desired rotation
- Visual indicators for high level (red) and low level (green)
- Floats fit through a 2" schedule 40 pipe nipple
- Drop tube float compatible with Morrison 419 2" drop tube; reduces float entanglement when turbulent conditions are present
- 918T and 918FT series are compatible for use with Diesel Exhaust Fluid (DEF)
- Alarm set point calibrated at installation.
- The alarm box is compliant with UL 918 and CSA 157 intrinsic safety standardsCompatibility The 918 alarm box can be paired with a variety of Morrison 918 clock gauges or level sensors Box Contents Clock gauge only - Downloads
