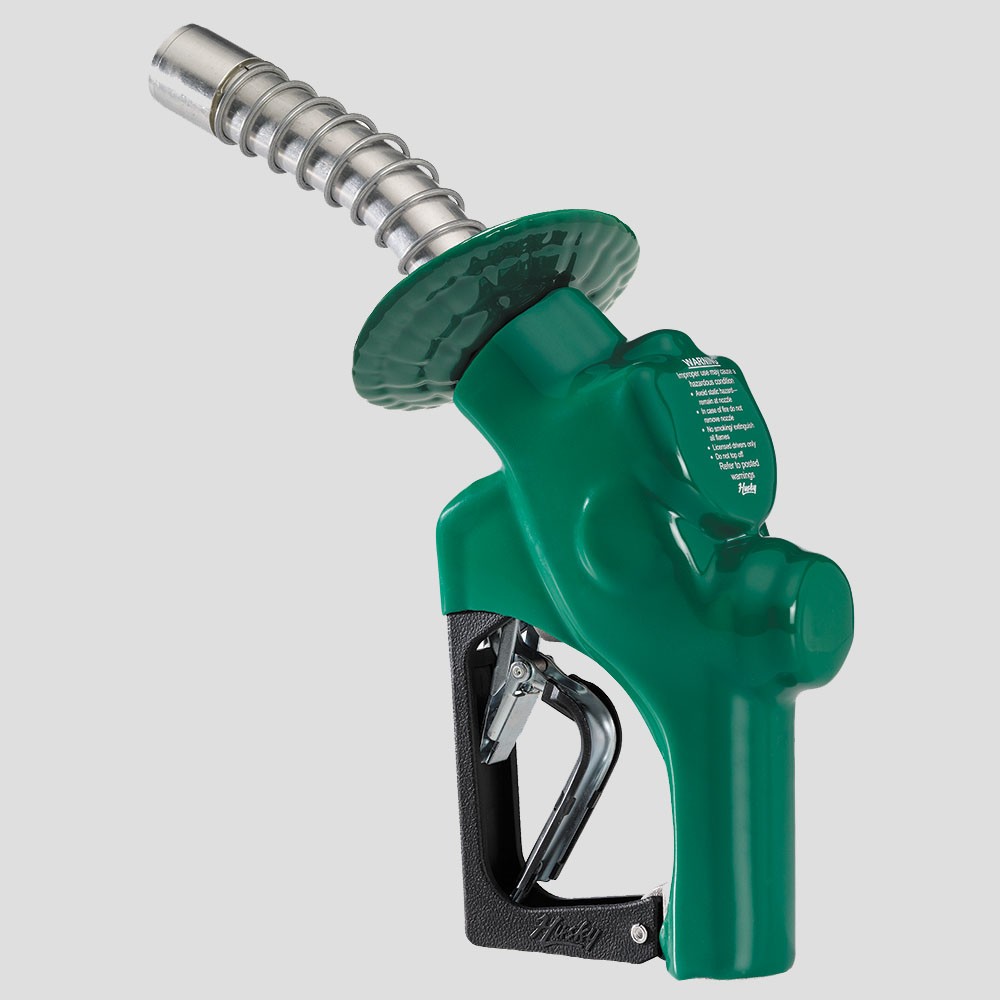

Husky Automatic Shut-Off Nozzle - 173310N-03

Husky Automatic Shut-Off Nozzle - 173310N-03

Husky Automatic Shut-Off Nozzle - 173310N-03
1" Diesel Nozzle with Three Notch Hold Open Clip, Waffle Splash Guard, and Spout Bushing
Product Options
Model# Description
503010N-03 1" Diesel Truck Stop Nozzle with Three Notch Hold Open Clip and Waffle Splash Guard without Bushing
045703N-03 1" Diesel Nozzle with Three Notch Hold Open Clip, Full Grip Guard and Hook
Description

Details

1" Diesel Nozzle with Three Notch Hold Open Clip, Waffle Splash Guard, and Spout Bushing
Additional Information

Additional Information

Classification Nozzle
Manufacturer Husky
Model 173310N-03
SKU 173310N-03
Design Features VIII nozzle shuts off when gas tank is full.

Spout is reinforced with thick aluminum bushing that retains spout spring and keeps spout from rounding-in: the two leading causes of clicking off and splash-back spillage.

Equipped with a unique Flo-Stop device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.

Comes standard with full grip guard and waffle splash guard.
Input 1"
Box Contents Nozzle
Applications For truck stop and other high volume full-service, self-service, and unattended stations
Weight (lbs) 3.9 lbs
Material of Construction Body: Aluminum
Seals: Fluorocarbon
Packing: Double O-ring seal protected by fiber reinforced Teflon®
Lever: One piece contoured steel
Product Options
  • Husky Automatic Shut-Off Nozzle - 503010N-03
  • Classification: Nozzle
  • Manufacturer: Husky
  • Model: 503010N-03
  • SKU: 503010N-03
  • Design Features: VIII nozzle shuts off when the gas tank is full.

    Spout is reinforced with thick aluminum bushing that retains spout spring and keeps spout from rounding-in: the two leading causes of clicking off and splash-back spillage.

    Equipped with a unique Flo-Stop™ device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.

    Comes standard with full grip guard and waffle splash guard.
  • Applications: For truck stop and other high volume full-service, self-service and unattended stations
  • Weight (lbs): 3.9 lbs
  • Material of Construction: Body: Aluminum
    Seals: Fluorocarbon
    Packing: Double O-ring seal protected by fiber reinforced Teflon®
    Lever: One piece contoured steel
  • Husky Automatic Shut-Off Nozzle - 045703N-03
  • Classification: Nozzle
  • Manufacturer: Husky
  • Model: 045703N-03
  • SKU: 045703N-03
  • Design Features: 1GS nozzle shuts off when the gas tank is full.

    Equipped with unique Flo-Stop™ device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.

    Not for use with gravity tanks.

    Not legal for retail dispensing applications.
  • Input: 1" NPTF
  • Weight (lbs): 3.6 lbs
  • Material of Construction: Body: Aluminum
    Seals: Fluorocarbon
    Packing: Double O-ring seal protected by fiber reinforced Teflon®
    Lever: One piece contoured steel with hard plastic cover
