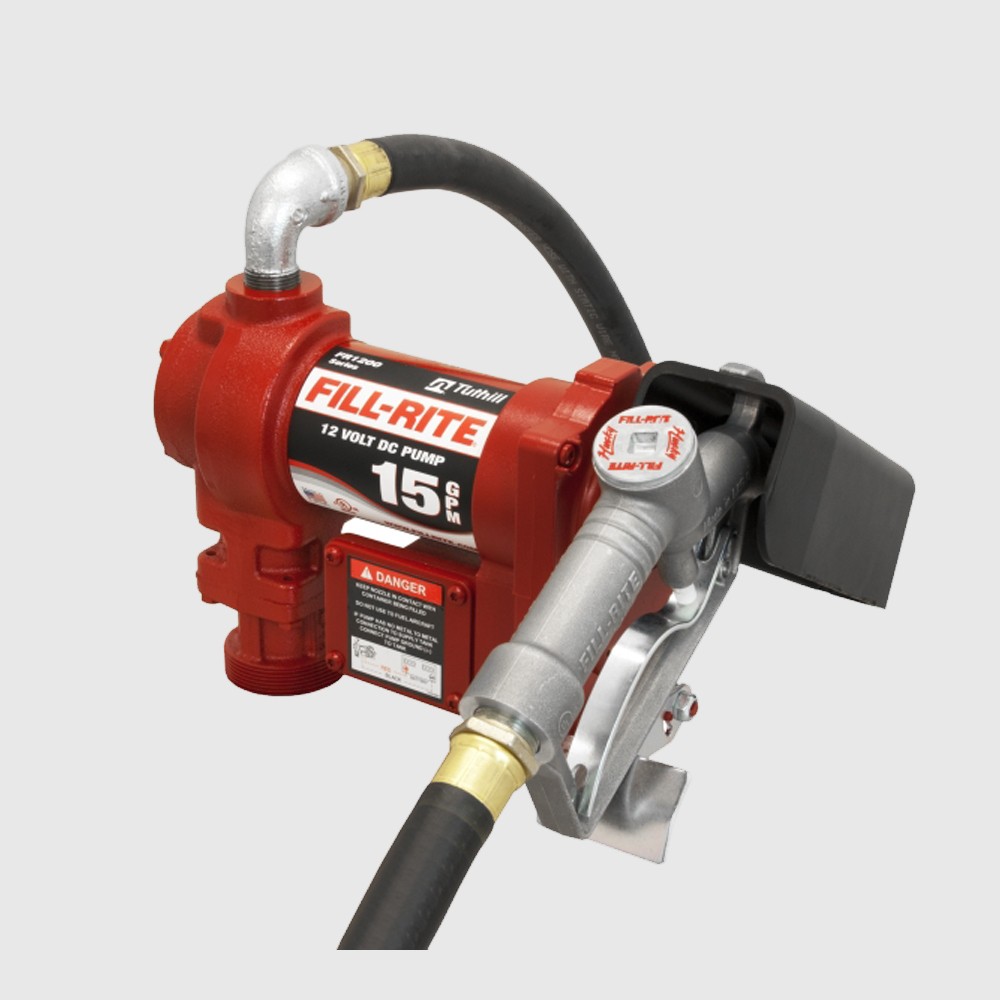

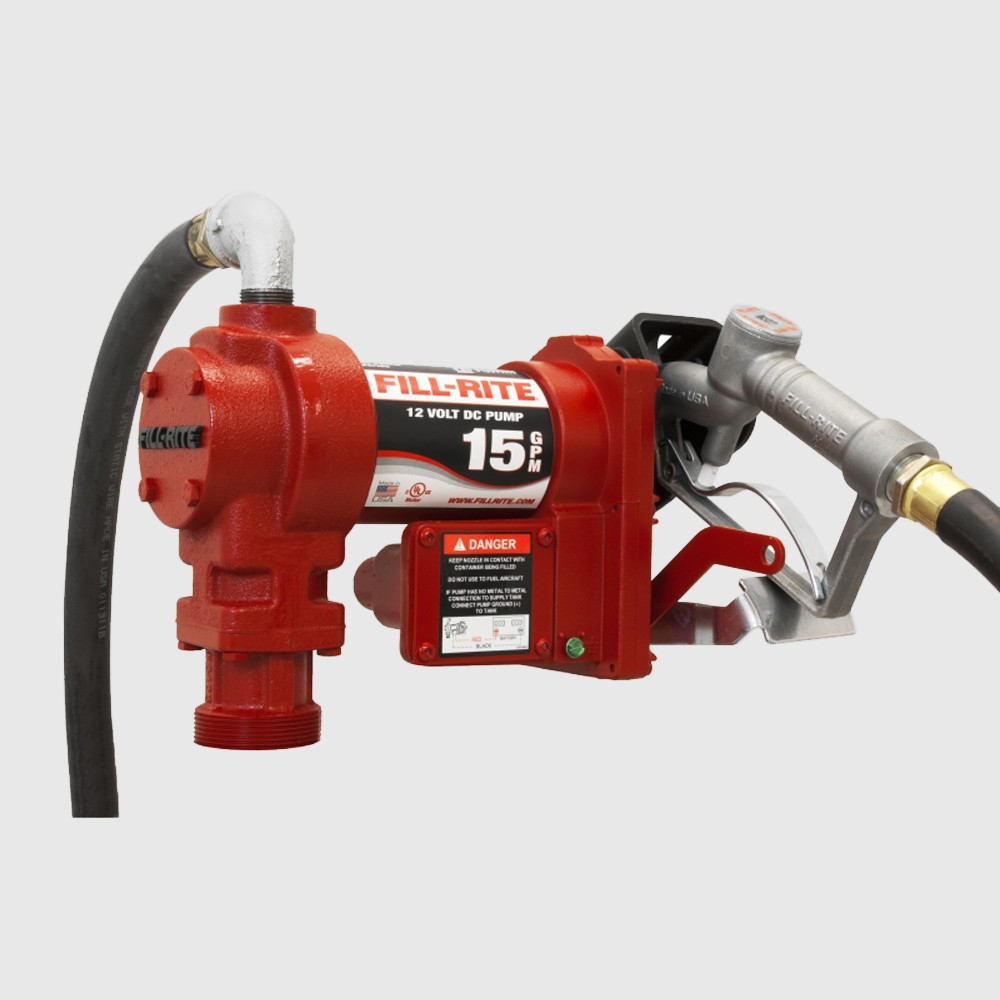

Fill-Rite 12 VDC Pump - FR1210G
- Description
-
Details
12 VDC 15 GPM 1/4 HP Pump with Hose and Manual Nozzle - Additional Information
-
Additional Information
Classification Fuel Pump Manufacturer Tuthill - Fill-Rite Model FR1210G SKU FR1210G Design Features Cast Iron Construction, 30 Minute Duty Cycle, UL/cUL Certified Motor (exception FR1614), 2" NPT Bung Mount Compatibility Diesel, Gasoline, E15, Kerosene, and Bio-Diesel up to B20 Dimensions (L x W x H) 15.5 x 10 x 6.5 Input 1" Output 3/4" Color Red Box Contents 12 ft. hose with static wire and manual nozzle Applications Pick-up truck tanks, various size drum above ground bulk Weight (lbs) 31 lbs Flow Rate (GPM) 15 GPM Flow Rate (LPM) 57 LPM Motor Power (HP) 1/4/ HP - Product Options
-
- Classification: Fuel Pump
- Manufacturer: Tuthill - Fill-Rite
- Model: FR1204G
- SKU: FR1204G
- Design Features: Heavy Duty Cast Iron Construction, Cast Bronze Rotor with Bronze Rotary Vanes, 2" Threaded Base for Tank Mounting, Built-In Strainer, UL/cUL Listed Motor
- Compatibility: Diesel, Gasoline, Kerosene, E15, and Biodiesel up to B20
- Input: 1"
- Output: 3/4"
- Box Contents: Pump Only
- Applications: Pick-up Truck Tanks
- Notes: Replaces FR1204
- Flow Rate (GPM): 20 GPM
- Flow Rate (LPM): 75 LPM
- Motor Power (HP): 1/4/ HP
- Classification: Fuel Pump
- Manufacturer: Tuthill - Fill-Rite
- Model: FR1211G
- SKU: FR1211G
- Design Features: Cast Iron Construction, 30 Minute Duty Cycle, UL/cUL Certified Motor (exception FR1614), 2" NPT Bung Mount
- Compatibility: Diesel, Gasoline, E15, Kerosene, and Bio-Diesel up to B20
- Dimensions (L x W x H): 18 x 17.375 x 11
- Input: 1"
- Output: 3/4"
- Color: Red
- Box Contents: 12 ft. hose with static wire, manual nozzle, and meter
- Applications: Pick-up truck tanks, various size drum above ground bulk
- Weight (lbs): 37 lbs
- Notes: Replaces FR1211C
- Flow Rate (GPM): 15 GPM
- Flow Rate (LPM): 57 LPM
- Motor Power (HP): 1/4/ HP
- Classification: Fuel Pump
- Manufacturer: Tuthill - Fill-Rite
- Model: FR4210G
- SKU: FR4210G
- Design Features: Cast Iron Construction, 30 Minute Duty Cycle, UL/cUL Certified Motor (exception FR1614), 2" NPT Bung Mount
- Compatibility: Diesel, Gasoline, E15, Kerosene, and Bio-Diesel up to B20
- Dimensions (L x W x H): 18 x 17.375 x 11
- Input: 1"
- Output: 1"
- Color: Red
- Applications: Pick-up truck tanks, various size drum above ground Bulk
- Weight (lbs): 37 lbs
- Notes: Replaces FR4210D
- Flow Rate (GPM): 20 GPM
- Flow Rate (LPM): 75 LPM
- Motor Power (HP): 1/4 HP
